Heavy Duty Cantilever Rack System
Products summary: Cantilever rack consists of column, base, arm and connecting bracing. Single and double side are both available. Column height can be up to 6000mm and arm length is better to be within 1000mm. Arm can be adjusted by a pitch of 100mm. Cantilever rack is specially designed to...
Keywords:
Heavy Duty Cantilever Rack System
Hotline:+8615963413641
Inquiry
Product Description

Products summary:

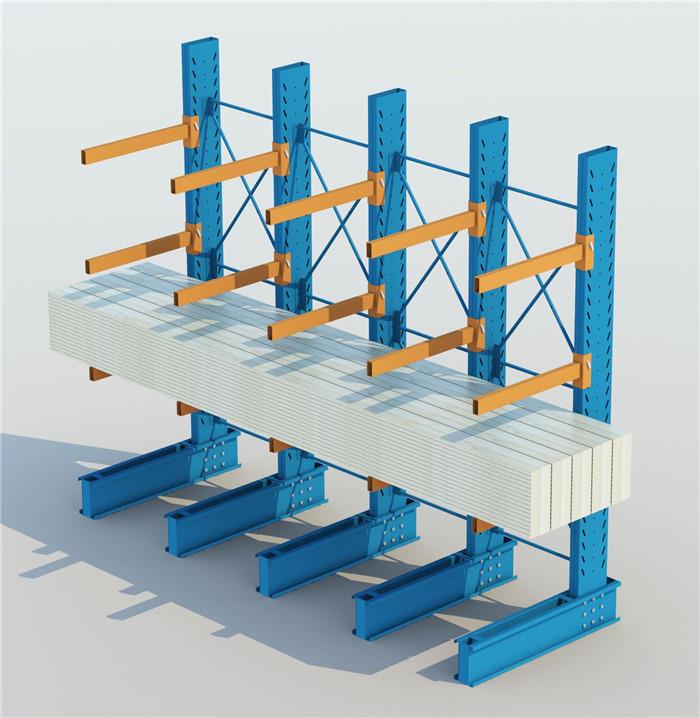

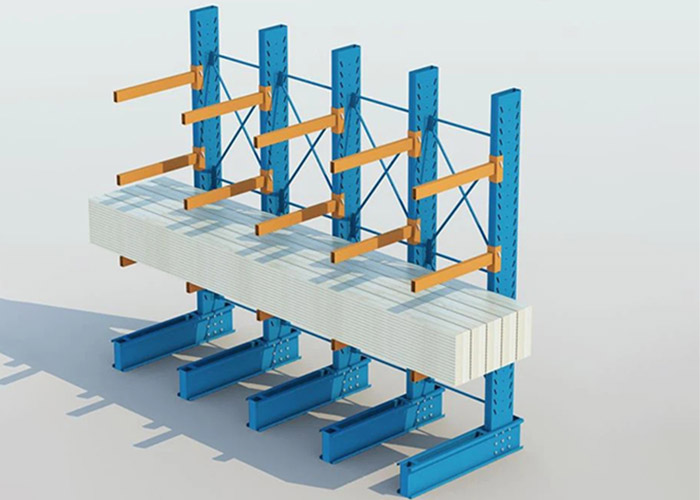

Cantilever rack consists of column, base, arm and connecting bracing. Single and double side are both available. Column height can be up to 6000mm and arm length is better to be within 1000mm. Arm can be adjusted by a pitch of 100mm. Cantilever rack is specially designed to store items of various length, such as metal beams, pipes, timbers, wooden boards, metal and plastic sheets and so on. The cantilever rack can be of light duty type, medium duty type and heavy duty type.






Cantilever rack classification:



Cantilever rack roll-formed type is a kind of light duty rack. The upright size specifications are 200*80*2.0/2.5, 300*90*3.0mm. Arm material choice is designed based on the loading capacity.




Parameter

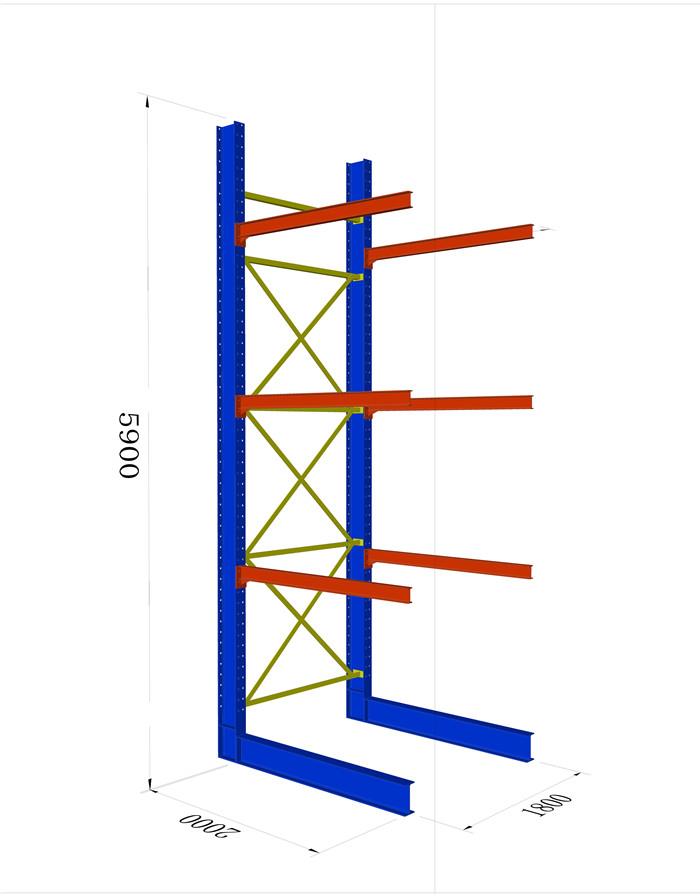

H beam cantilever rack is a kind of heavy duty rack. It is also called structural cantilever rack. Columns has three options and can be up to 6000mm. Arm can be made as long as 1800mm and adjusted by a pitch of 101.6mm. H beam cantilever rack can bear more loads than roll-formed type. The column has three size specification: 200*100HN, 250*125HN, 300*150HN. The arms material choice is based on the load capacity of each arm.

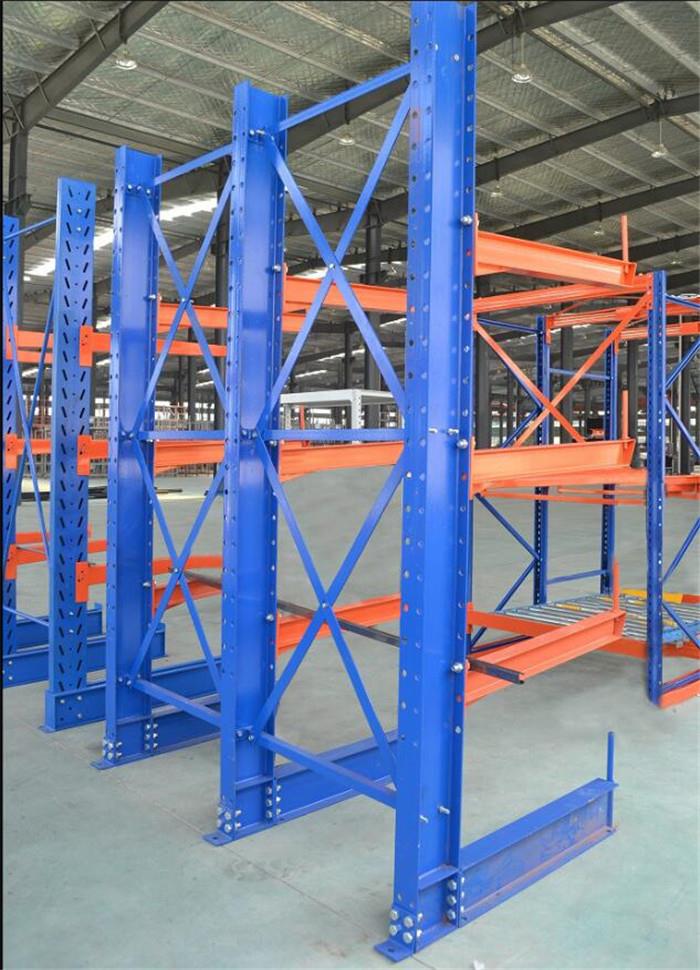

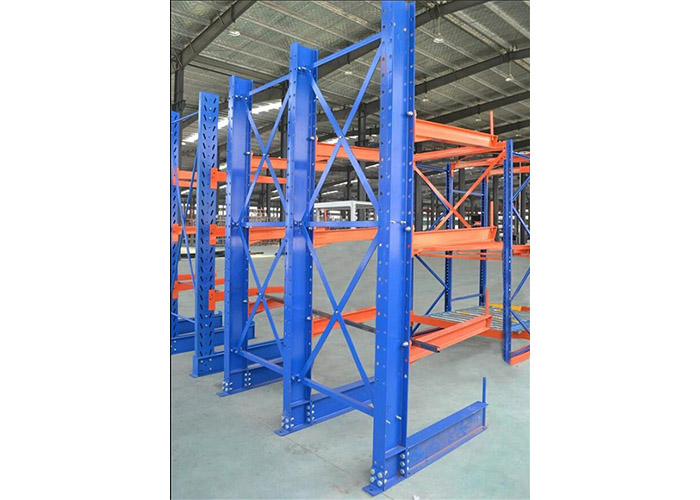

Cantilever rack components:

Column:

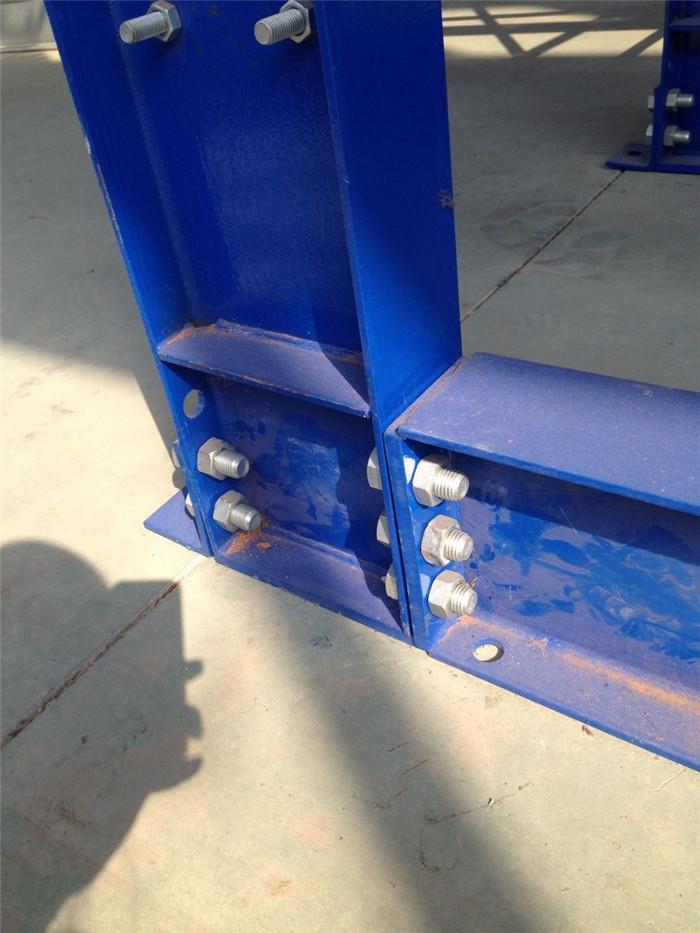

Base:

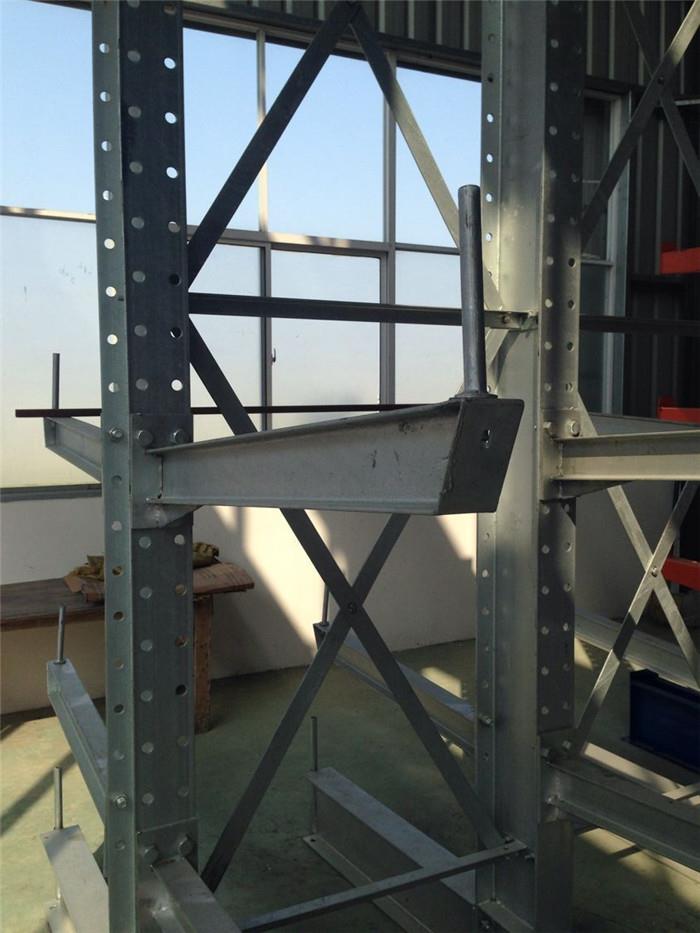

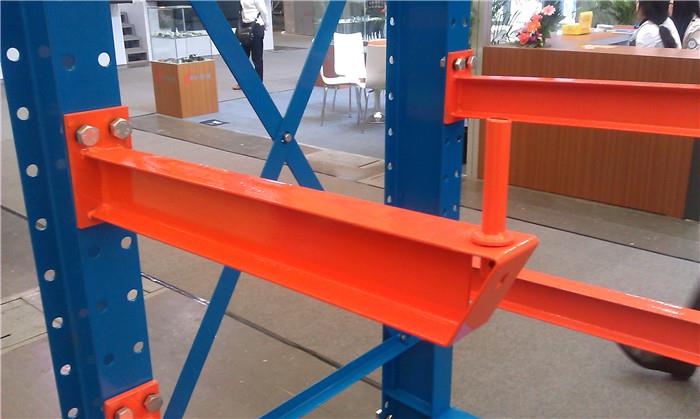

Arm:

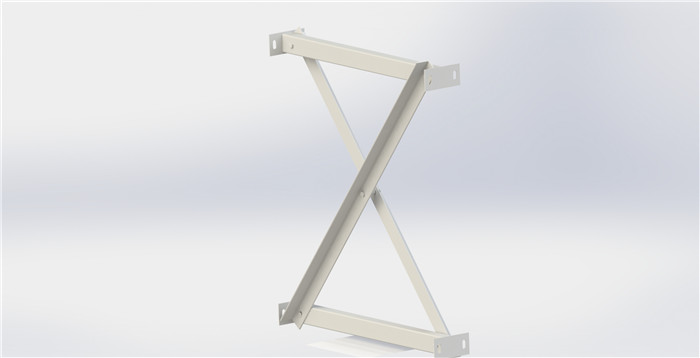

Bracing: Horizontal bracing and diagonal bracing.












Application description

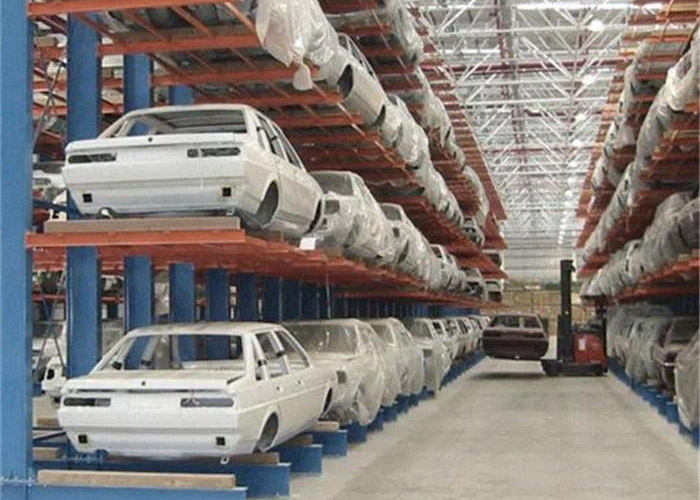

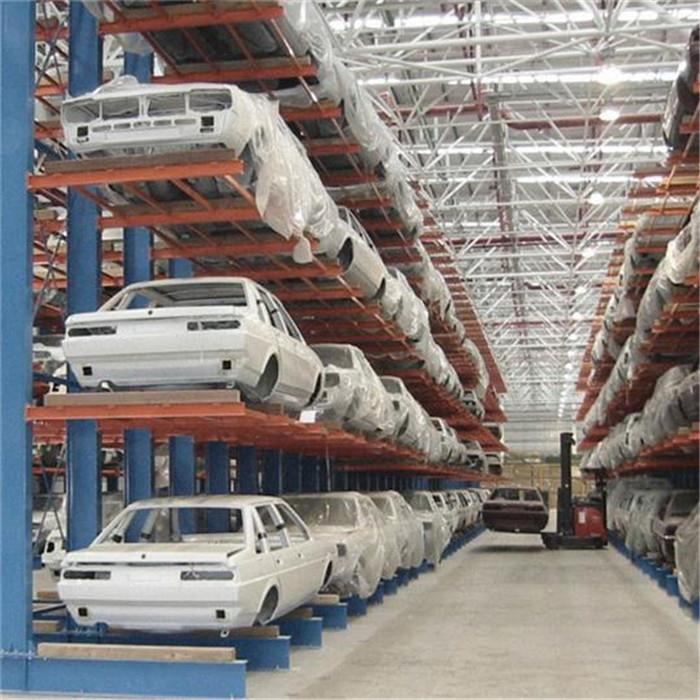

Real cases:

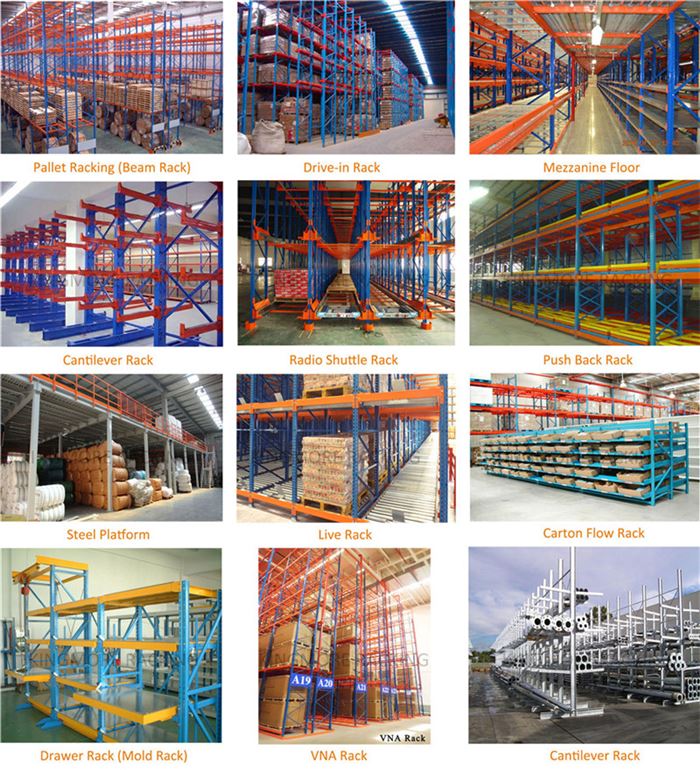

Related products:




Shipping Packaging
2021-11-25 120118.jpg 4750adb51b231f71e7a984a78dd3f92.jpg
Why Choose Us?
Reply the inquiry quickly and give response within 1hour, 24hours online
Get the customers requirements clearly, provide suitable solutions within 2 hours
Bolted type design racks, which is small volume.
Delivery the goods on time, 7-10 days/40HQ,5-6 days/20ft, or according to customer's requirements.
Provide the free drawing and layout
Customized the color according to customer request
Print the logo on the surface of the package
Can provide the free samples
Professional sales team and can recommend the suitable sizes.
year warranty
Accept payment : T/T, L/C, D/P, CREDIT CARD
Professional R & D team
Accept OEM & ODM
FAQ
What are the main aspects of your price advantage compared to other competitors?
As a factory,we can control our production cost, our racks is bolted design, which is small volume so we can save much shipping cost, then provide you a best competitive price.
What specifically does your quality inspection include?
We have our own inspection system, our inspector checking the raw material before production; and our worker also checking the quality during the production , our inspector check the quality and package before we shipping it. If customer need it, we can do loading test. Of course, we also accept the 3rd party arrange the inspecting .
What is your delivery deadline?
Ususally, our delivery date is 7 -10 days /40hq , and 5-6 days /20ft once receive your deposit ,we will produce it fast and delivery it on time .
What is your production capacity?
we can produce 1500sets racks.
How long can my question be replied to?
Our salers will reply you within 1.5 hour once receive your message.
Can you guarantee the quality of your products?
We have advanced production lines, and we invested automatic production equipment, try to improve our quality and short our delivery date.
What certificates do you have?
We have CE, SGS, ISO90001, EPR certificate, if you need other certificate also let me know, we can apply that certificate for you.
Can we customize products?
We can provide OEM & ODM service, please send me your warehosue sizes and load capacity , we can help you customized it.
Do you provide color options?
Usually, our standard color is blue, orange, white, matte gray ,and matte black color, if you want extra color please show me the color sample, if you quantity more than 50 sets, we can customized color for you.
Is a load-bearing test provided?
Yes, we can provide the loading test video, let me show you the video.
Our package is bubble film and carton box packing.If you need ,we also can do the steel pallet for you.
Our package is bubble film and carton box packing.If you need ,we also can do the steel pallet for you.
What is the commission for referring clients?
I will give you 2% commision if you can introduce the clients and he places order to us.
Can you provide layout drawings, blueprints, etc?
Yes, of coure, our engineer can provide the drawing and layout according to your requirements.
What method do you use for transportation?
Our factory nearby Qingdao port, we have professional forwarder partne, if you need , we can help you arrange booking container and arrange the shipping for you.
What is your payment process?
Our payment term is 30% payment in advance, the balance payment should be paid before shipping.
Are you a factory or a trading company?
We are a professional sourcing factory,welcome you and your partner to visit our factory at any time.
How is after-sales service conducted?
After you receive the goods ,if there are some problems of quality ,please feel free to contact me ,I will reply you as soon as i see the message ,and feed back the situation to our team ,give you a satisfactory result.
What are the channels for understanding your company?
You can browse our website, and there are some comments from our clients, so that you can know more about our company.
Can I see specific photos or videos of the product?
we have professional colleague take pictures and vedios of products.
Can I visit that part of your factory?
We invite you visit our factory, checking our production line, machinery, products, package and more details in our factory .
How do I know the loading capacity of the product?
We will take some pictures and vedios timely ,and send them to you ,which can help you know about situation of loading.
Can we provide one-stop service?
We can provide one-stop services,you can buy some products of your warehouse/supermarket from our factory,and load all the goods in our factory,which can help you reduce some cost ,such as freight.
How long is your industry experience?
We have more than 12 years experience of producing shelves,with professional production and technical team.
Can l get some samples?
We can provide sample for free,but you need to pay for the freight,after you receive the goods,I have confidence that you will satisfied with our products,when you take next order ,i will reduce the cost for the freight of the sample.
