InquiryThe advantage of the Warehouse Storage Rack
-Equipped with advanced process;
-Having longer service life for use and no special need of maintaining;
-Being easy to deformation, with reliable and easy connection;
-Making full use of warehouse space, improve capacity utilization, expand storage capacity compared with Three-dimensional structure;
-Realizing the function to ensure easy installation due to the proper size and compact design;
-Completing guarantee the function of the material itself, reduce the loss of goods in the storage link;
-Can be an ideal facility used to ensure the quality of goods stored, which is moisture-proof, dustproof, theft-proof and damage-proof, thus to ensure high and reliable performance;
-Complete guarantee the function of the material itself, reduce the loss of goods in the storage link;
-being an ideal facility used to ensure the quality of goods stored, which is moisture-proof, dustproof, theft-proof and damage-proof, thus to ensure high and reliable performance;
Types of warehouse storage rack
There are many types of shelves of the warehouse storage racks, such as pallet racks, drive in racks, push back racks, cantilever racks, etc., which can become storage racks in indoor warehouses,
Generally speaking, pallet racks are the most,Limited by the following reasons, we will recommend different rack types to customers according to the actual situation,get more details from our Professional salesperson.
-Dimensions of warehouse, including length, width and height and ground layout
-Size and type of goods;
-Storage and access mode of goods;
-Weight of goods on per pallet;
-Efficiency of goods in and out;
Accesories of Warehouse Storage Rack

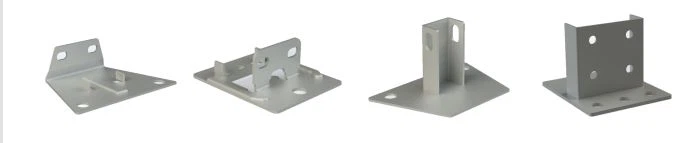

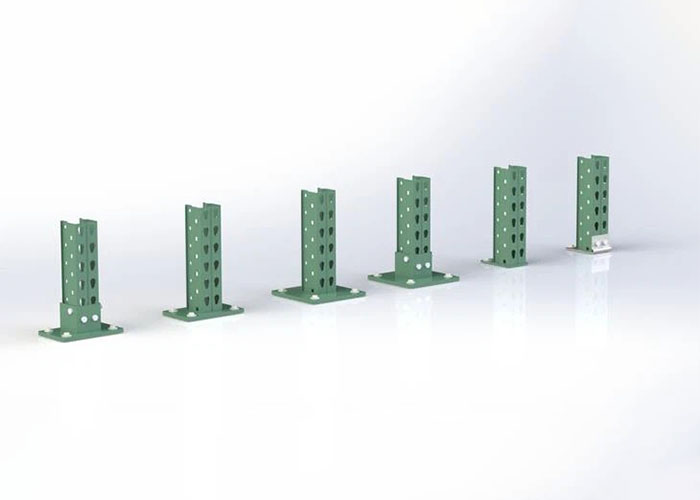

1-Basement plate:In order,Type-I,Type-II,Type-III,Type-IV.(If other types? welcome to connect for asking)

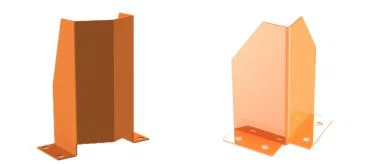

2-Upright Protector:In order,U shaped protector,L shaped protector

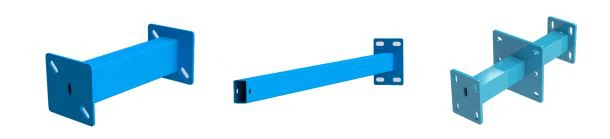

3-Row spacer:In order:Double side row spacer,Single side row spacer,special type spacer.
4-Pallet support bar:In order:Galvanized pallet support bar,Powder coating pallet support bar (RAL2004)
Main Parts of Warehouse Storage Rack

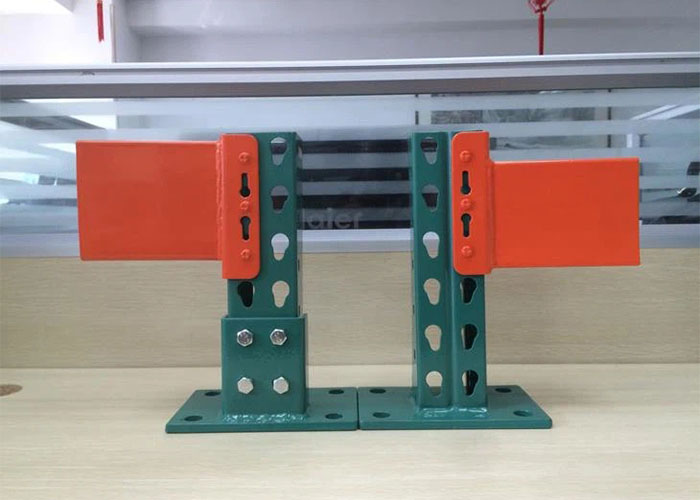

1-Upright,
Hole:Teardrop、Hexagon、waterdrop、square、bullet.
Pitch:50mm、50.8mm(American type)、75mm、76.2mm.
Section:3"*3"、80*60、85*67、90*70，100*67、100*95、120*75、120*95、140*95，150*95
Details as below:.(More loading details? welcome to connect for asking)
2-Beam

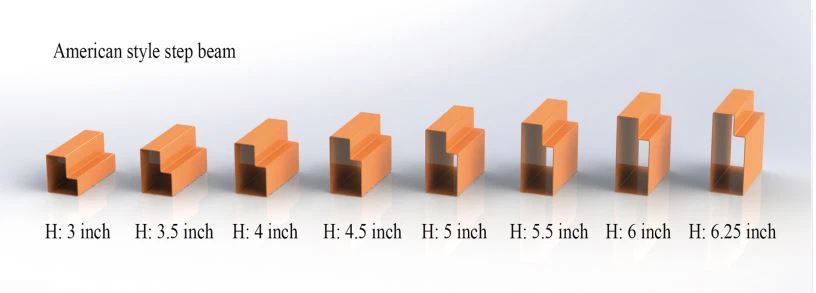

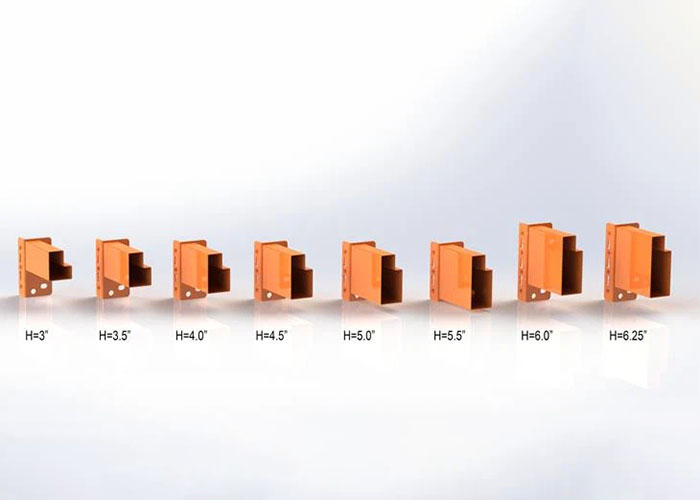

-American Step beam:H3",H3.5",H4",H4.5",H5",H5.5",H6",H6.25",The length can be customized freely,
Thickness:16Ga,15Ga,14Ga.

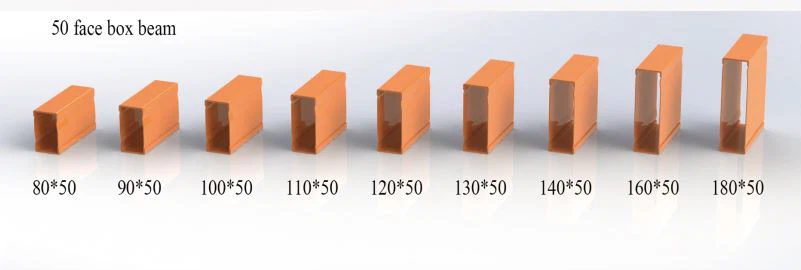

-50mm face box beam:80*50mm,90*50mm,100*50mm,110*50mm,120*50mm,130*50mm,140*50mm,160*50mm,180*50mm,
Thickness:1.5mm,

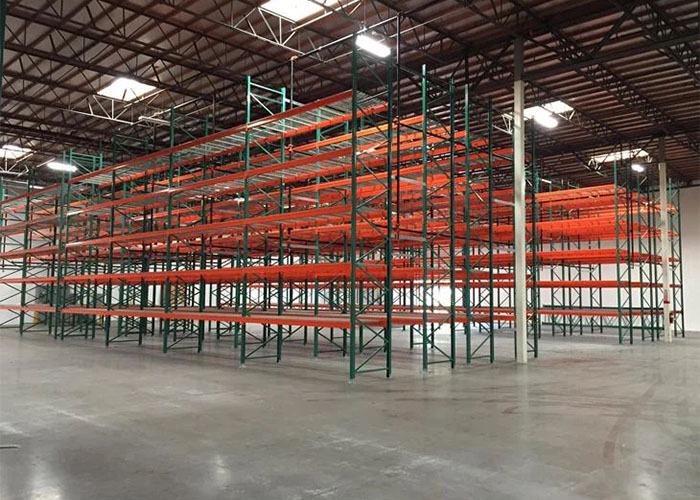

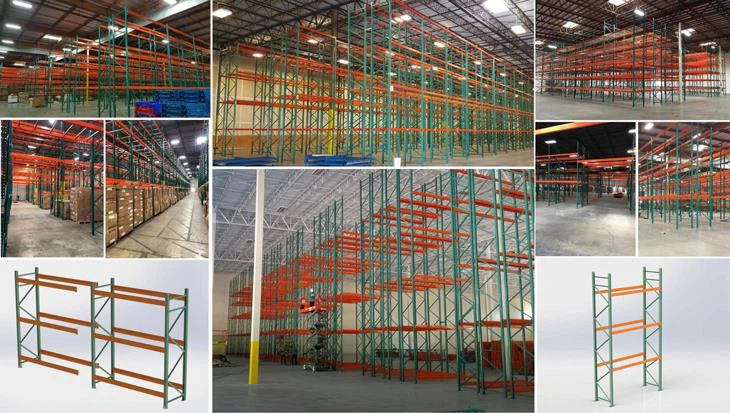

Project Display
In the more than ten years since the establishment of the company, we have been supported by many customers and recognized by many institutions with stable product quality, high-quality service and competitive price. The warehouse storage rack we built in the United States has been highly praised by customers and received photo feedback. We display it on our website.
